Injection Molded Set Point Knobs, Spacer Bellows and Casting Bases for the Oil & Gas Industry

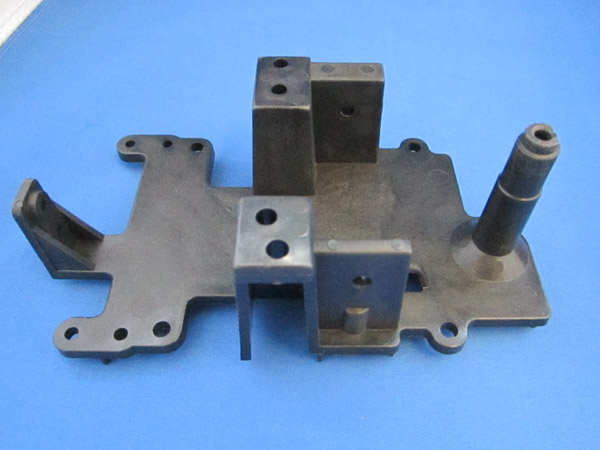

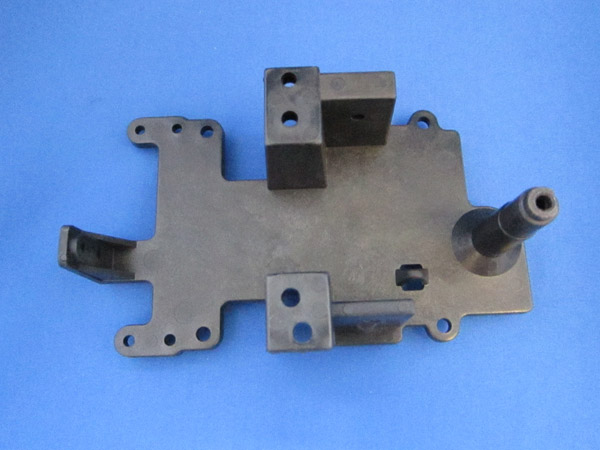

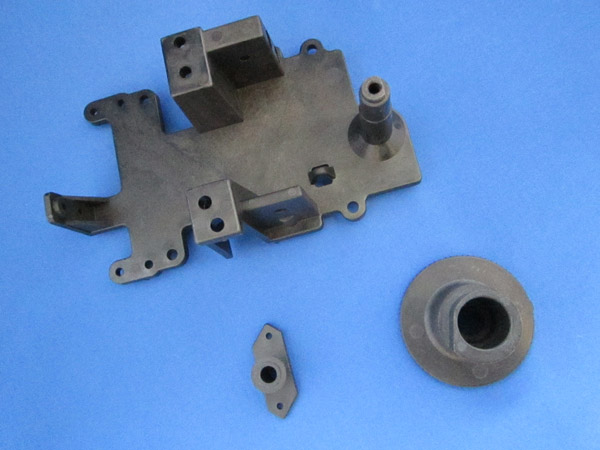

As injection molding specialists, KRC Custom Manufacturing can economically manufacture parts of various sizes and quantities. The set point knobs, spacer bellows, and casting bases pictured here represent a variety of similar-type products we produce in our facility on an everyday basis.
For these parts, we dried 40% long-fiber glass filled black polypropylene for 2-4 hours at 180° to properly prepare it for the injection molding process. We utilized 60 and 230 ton presses for manufacture and inspected the finished parts to ensure they were free from flash, underfill, and burn marks. An additional milling operation was executed on the set point knobs to remove the sprue from the part.
With applications in level, pressure, and temperature control products, as well as in valves and regulators, we produce these products to withstand the environmental exposures of the chemical, power generation, and oil & gas processing industries. Typical volume averages 2,000 units/year, and typical turnaround times average less than one week.
If you are interested in learning more about these products, our processes, or our full range of high quality yet economical services, contact us today.
Highlights of this Injection Molded Set Point Knobs Project
- Injection Molding Capabilities Applied/Processes
- Equipment Used to Manufacture Part
- 60 ton Demag and 230 ton Van Dorn.
Milling machine used for a secondary operation on the set point knobs
- Material Used
- RTP199X70836B 40% Long Fiber Glass Filled Black Polypropylene
- Material must be dried for 2-4 hours at 180° prior to starting machine
- In process testing/inspection performed
- Quality Checks
- Burn Marks
- Level, Pressure, and Temperature Control Products
Control Valves, Butterfly Valves, Check Valves, and Regulators
- Industry for Use
- Oil & Gas
- 2,000 per Year
- Delivery/Turnaround Time
- Usually less than a week if needed
- Delivery Location
- Standards Met
- Customer Specifications, 2D CAD Drawing
- Product Name
- Set Point Knobs, Spacer Bellows, Casting Bases
